HDPE Dredging Pipe

SINOPIPE High density polyethylene pipe(HDPE PIPE) takes special polyethylene as the raw material and be extruded by once-shaping technology from a plastic extruder. HDPE pipe can be applied to all dredging project such as river dredging and mine tailing dredging,especially to transport high wearing material. HDPE pipe is your ideal and economical choice for your dredging work.

Performance and Characteristics
※ Corrosion resistance: high resistance to attach from various types of chemicals,no electrochemical corrosion.
※ High toughness: fracture extension rate of HDPE pipe, commonly more than 500%. As to the uneven settlement of the base, its adaptive ability is very strong, good aseismic performance.
※ Light weight: by comparing steel pipe, the HDPE pipe is only 1/5 of steel pipe on the weight.

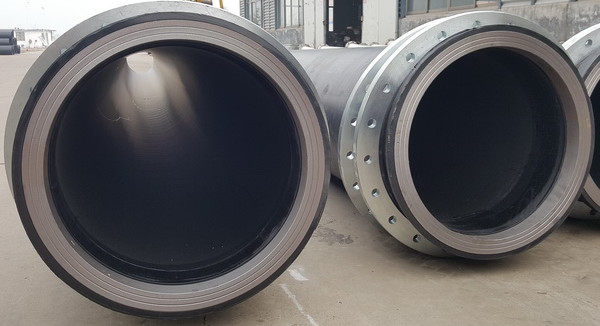

※ Easy to assemble or dismountable: The HDPE dredge pipe welded with flanges can be assembled or disconnected very easily.
※ Excellent flexible and resistance to scratches ability.
※ Good wear resistance, low wall friction coefficient, small flow resistance, excellent conveying ability.
※ Low system cost, less maintenance costs, can dramatically reduce the cost for the project.
※ Long service life.
※ Recyclable and environment-friendly: HDPE material can be reused, complete with the concept of efficient environmental protection which our state advocates

Nominal Outer Diameter(mm)	Pipe Wall Thickness(mm)
	SDR26	SDR21	SDR17	SDR13.6	SDR11
	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa
	PN6	PN8	PN10	PN12.5	PN16
20				2	2.3
25				2.1	2.3
32				2.3	3
40			2.3	2.9	3.7
50			2.9	3.7	4.6
63			3.7	4.7	5.8
75			4.5	5.6	6.8
90		4.3	5.4	6.7	8.2
110	4.2	5.3	6.6	8.1	10
125	4.8	6	7.4	9.2	11.4
140	5.4	6.7	8.3	10.3	12.7
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30	37.4	46.3	57.2
710	27.2	33.9	42.1	52.2	64.5
800	30.6	38.1	47.4	58.8	72.7
900	34.4	42.9	53.3	66.2	81.8
1000	38.2	47.7	59.3	73.5	90.9
1100	42.3	52.4	64.7	80.9	100
1200	46.2	57.1	70.6	88.2	109.1

Product Name	HDPE Dredge Pipe
Specification available	DN110-1200mm(outer diameter）
SDR/pressure ratings	SDR9/PN20,SDR11/PN16,SDR13.6/PN12.5,SDR17/PN10,SDR21/PN8,SDR26/PN6,SDR33/PN5.
Material to be used	Virgin PE100 raw material
Colors available	Black color，or as per request
Standards that follow to	ISO4427,AS/NZS4130,BS EN 13224/12201,DIN 8077/8078,other international standards
Steel flanges at both ends （dimension）	The steel flanges can be customized-made as per request
Flange material	Stainless steel or carbon steel(galvanlized or other coated)
Packing method	To be made in bars with 5.8me or 11.8m length
MOQ	Negotiable
Production lead time	7-10 days for a 20ft container,10-15 days for a 40ft container
Warranty time	1 year for normal use
Payment term	T/T or LC at sight
FOB loading port	Qingdao or Shanghai China
Place of origin	Luoyang China

Technicial Data

Appearance	Inner and outer surfaces should be smooth，flat.Defects like bubble，obvious scratch，dents，impurity，uneven color are not allowed.Pipe end should be cut flat and keep vertical with pipe axis.
Thermal Stability （200℃）.min	＞20
Elongation at break	≥350
Longitudinal retraction rate	≤3
Melt flowing rate（MFR) (190℃.5kg）g/10min	Before and after processing,MFR change＜20%
Hydrostatic	PE80	1.20 ℃。 hoop stress：9.0Mpa；time to rupture≥100h 2.80 ℃。 hoop stress：4.5Mpa；time to rupture≥165h   3.80 ℃。 hoop stress：4.0Mpa；time to rupture≥1000h
	PE100	1.20 ℃。 hoop stress：12.4Mpa；time to rupture≥100h 2.80 ℃。 hoop stress：5.4Mpa；time to rupture≥165h   3.80 ℃。 hoop stress：5.0Mpa；time to rupture≥1000h
