Dredging Floater

Dredge Floater for offshore discharge dredge work.
Dredge Floater is made of MDPE shell & filled with PU foam.
Floater color can be orange or yellow or as request.
The pipe floater is a ideal solution for dredge work.

---

SAND INQUIRY

Dredge floats are made from high wear resistant MDPE material by rotational molding technology. The outer shell is made of medium density polyethylene material with excellent flexibility, filled inside with high strength polyurethane closed-cell foam. Dredge floats can provide buoyancy for dredge pipeline,widely used for supporting suction/discharge hoses. The dredging pipe floats are manufactured in a bright color to act as warning signs to other vessels in the vicinity.Dredge floats are also manufactured in a way that will allow them to absorb the energy from vessel collision, to protect the pipelines that they are supporting. Thanks to the excellent structure and good performance, the floats have become the ideal substitution of the traditional steel floater for the floating dredging pipes.

Features of Dredge floats

SINOPIPE dredge floats have many advantages as below:
※ Floating structure have shock and wave resistant structure, easy installation and excellent performance.
※ Good Toughness, strong environmental stress cracking resistance (ESCR), appropriate for offshore/lake construction.
※ Light weight, high resistance to wear,and low cost of transportation and transformation.
※ Resistance to corrosion and climate, 3 times long life time than steel ones.
※ Easy, fast and flexible assembling diversified modeling.
※ Low price and cost performance is significantly better than that of steel buoy.
※ Light weight, big Buoyancy.
※ resistance to impact, and acid-proof alkaline, anti-corrosive etc.
※ Simple installation and low maintenance costs.
※ service temperature range-60°C-80°C.

Size Table

PIPE OD	FLOATER ID	FLOATER OD	LENGTH	THICK	NET BUOYANCY
159	160	460	720	7	200
219	220	480	800	7	200
273	280	700	1070	7	420
300	300	700	1100	7	420
325	375	1100	850	7	850
325	360	1090	1070	7	920
350	375	1100	1100	7	920
400	414	1100	1200	8	1020
426	430	1200	1200	8	1200
450	480	1300	1300	8	1500
530	550	1400	1560	9	2219
630	630	1500	1800	11	2400
730	730	1500	1800	12	3593
750	780	1600	2000	13	3800
800	830	1800	2000	14	4800
850	880	1800	2200	15	5140
900	940	2200	2500	16	8180

Physical Parameters

Benefit
SINOPIPE (Medium Density Polyethylene)MDPE Pipe Floater is a necessary part for a complete dredging line. Two half sets encircle the pipe and fix by bolts. Floaters gives enough buoyancy and is designed to resist waves.

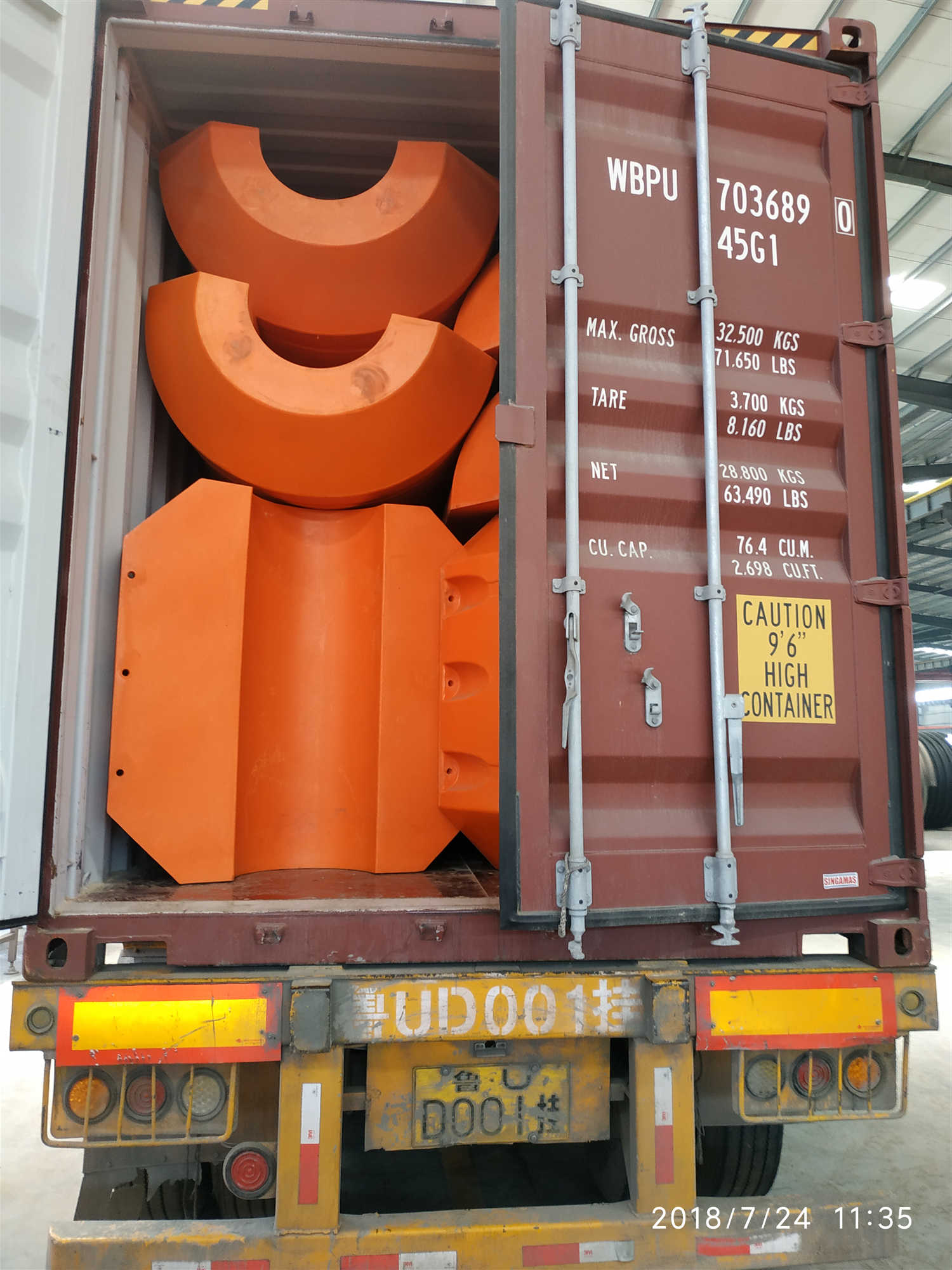

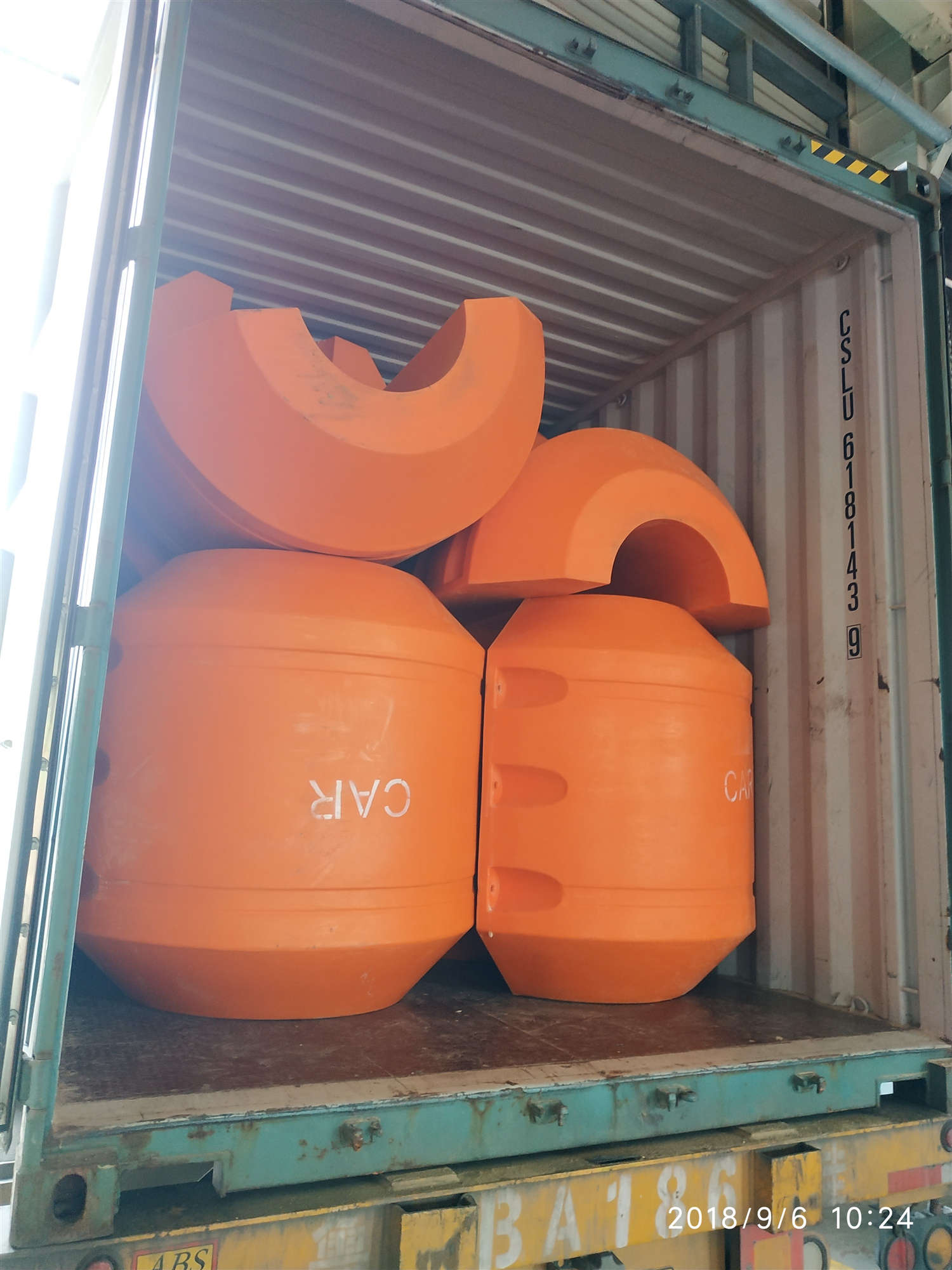

Loading & Shipment

SINOPIPE dredging floater have been exporting many foreign countries, such as Bangladesh, The Philippine, Columbia,South Africa, Zambia, Nigeria,Ethiopia,Russia and USA etc. Thanks to the superior quality, SINOPIPE dredging floater has been the first choice for our customers.
