PIPE FLOATER

DREDGING FLOATER

Product ID：PIPE FLOATER
Phone: +86-15036793056
WhatsAPP: +86-15036793056
Email: export@lysinopipe.com
Payment term: TT/LC/Western union
send inquiry

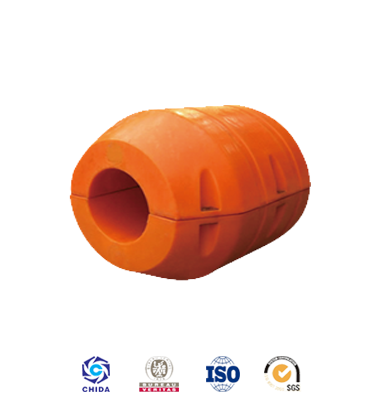

Dredging Floater

Dredge Floater for offshore discharge dredge work.
Dredge Floater is made of MDPE shell & filled with PU foam.
Floater color can be orange or yellow or as request.
The pipe floater is a ideal solution for dredge work.

SAND INQUIRY

Dredge floats are made from high wear resistant MDPE material by rotational molding technology. The outer shell is made of medium density polyethylene material, filled inside with high strength polyurethane closed-cell foam. Dredge floats can provide buoyancy for dredge pipeline,widely used for supporting suction/discharge hoses. The dredging pipe floats are manufactured in a bright color as warning signs to other vessels.Dredge floats can absorb the energy from vessel collision, to protect the pipelines that they are supporting.

Features of Dredge floats

SINOPIPE dredge floats have many advantages as below:
※ Shock and wave resistant structure, excellent performance in sea wave.
※ Good Toughness, strong environmental stress cracking resistance (ESCR).
※ Light weight, high resistance to wear,and low cost of transportation.
※ Resistance to corrosion and climate, 3 times long life time than steel ones.
※ Easy, fast and flexible assembling diversified modeling.
※ Low price and cost performance is significantly better than that of steel buoy.
※ Light weight, big Buoyancy.
※ Resistance to impact, and acid-proof alkaline, anti-corrosive etc.
※ Simple installation/maintenance.
※ Service temperature range----60°C-80°C.

Size Table

PIPE OD	FLOATER ID	FLOATER OD	LENGTH	THICK	NET BUOYANCY
159	160	460	720	7	200
219	220	480	800	7	200
273	280	700	1070	7	420
300	300	700	1100	7	420
325	375	1100	850	7	850
325	360	1090	1070	7	920
350	375	1100	1100	7	920
400	414	1100	1200	8	1020
426	430	1200	1200	8	1200
450	480	1300	1300	8	1500
530	550	1400	1560	9	2219
630	630	1500	1800	11	2400
730	730	1500	1800	12	3593
750	780	1600	2000	13	3800
800	830	1800	2000	14	4800
850	880	1800	2200	15	5140
900	940	2200	2500	16	8180

Physical Parameters

Item	Technical Index of Shell	Item	Technical Index of Internal Material
Tensile Strength	≥13.1MPa	Water Absorption Rate	1-2g/100cm2
Break Elongation	≥11.1%	Breaking Strength	0.08-0.1MPa
Impact Strength	≥32.4KJ/m2	Breaking Elongation	4-6%
Bending Strength	≥15.7 MPa	Compressive Strength	0.1-0.24MPa
Weather Resistance After tital aging energy≥3.5GJ/m2	Break Elongation %≥		10
Weather Resistance After tital aging energy≥3.5GJ/m2	Oxidative Induction Time 200℃mm≥		10

Applications

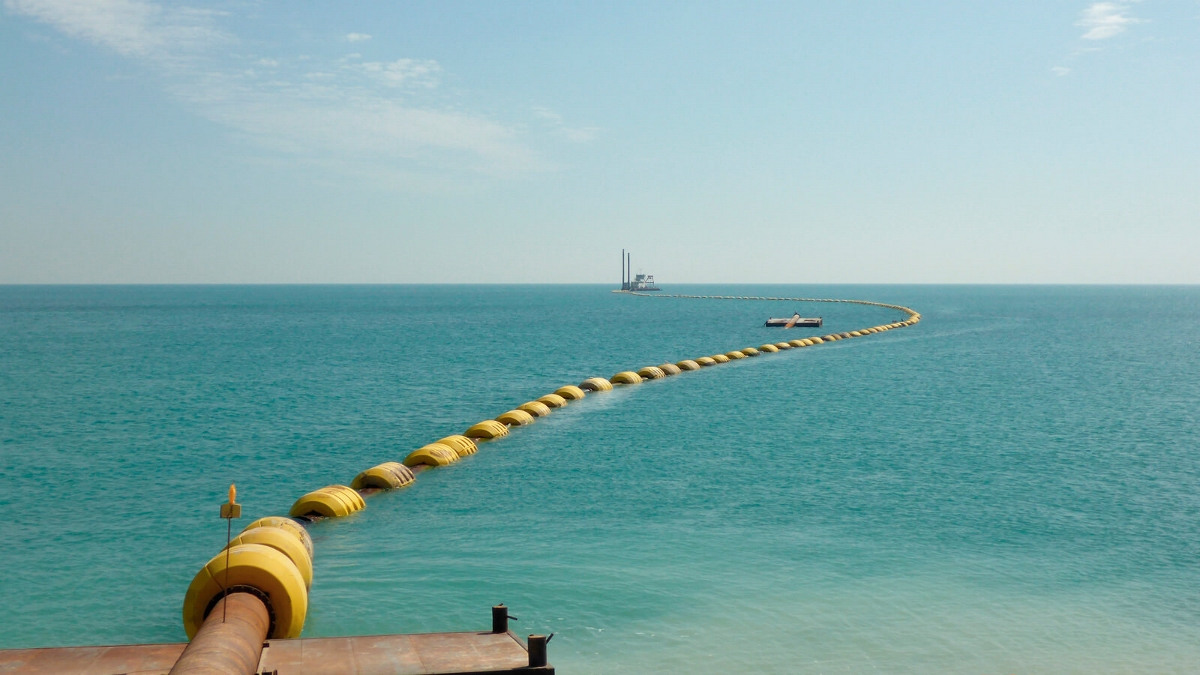

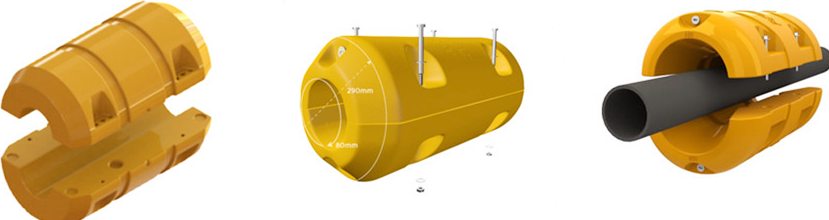

Sinopipe’s (Medium Density Polyethylene)MDPE Pipe Floater is a necessary part for a complete dredging line. Two half sets encircle the pipe and fix by bolts. Floaters gives enough buoyancy and is designed to resist waves.

Benefit
SINOPIPE (Medium Density Polyethylene)MDPE Pipe Floater is a necessary part for a complete dredging line. Two half sets encircle the pipe and fix by bolts. Floaters gives enough buoyancy and is designed to resist waves.

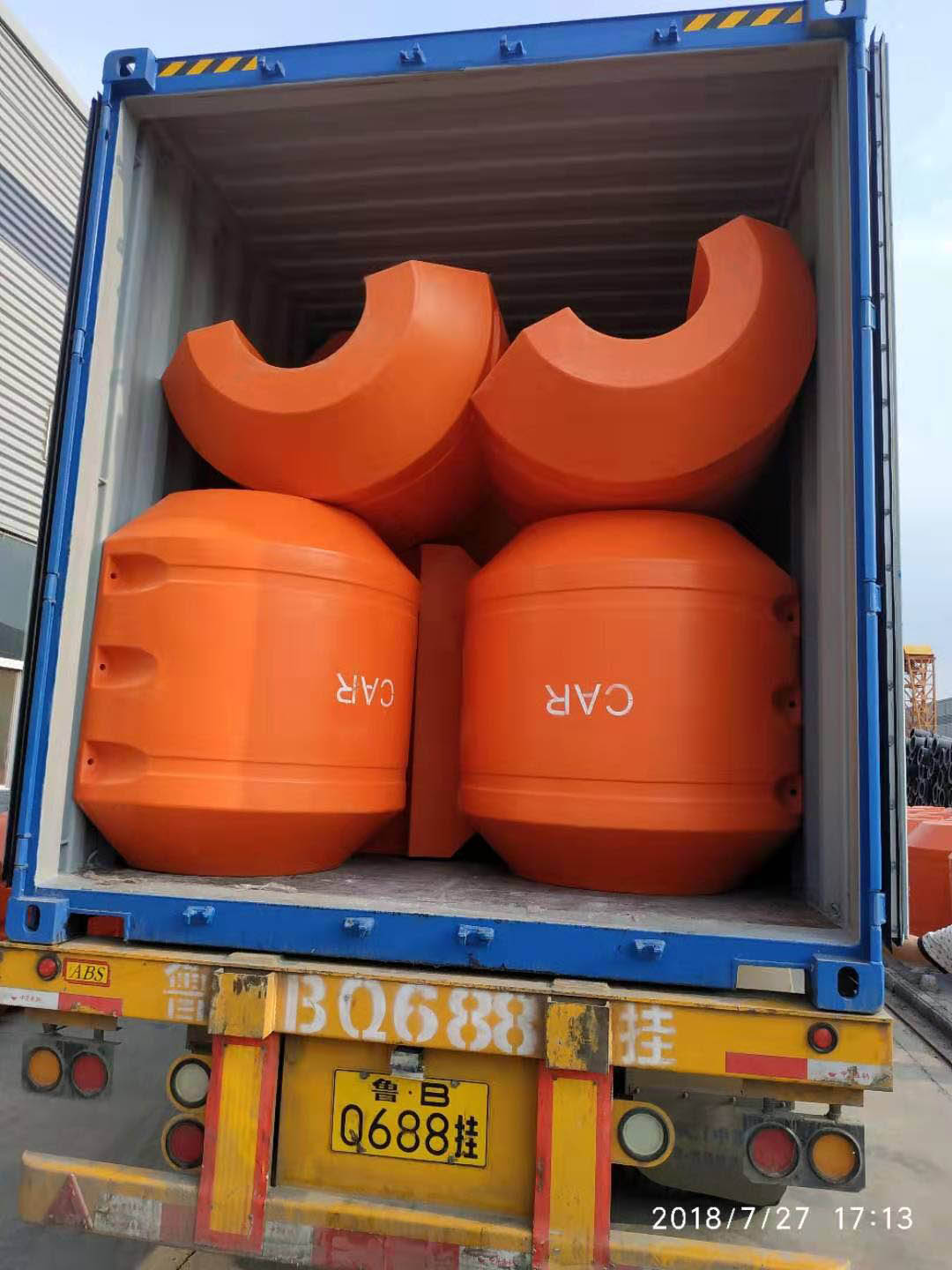

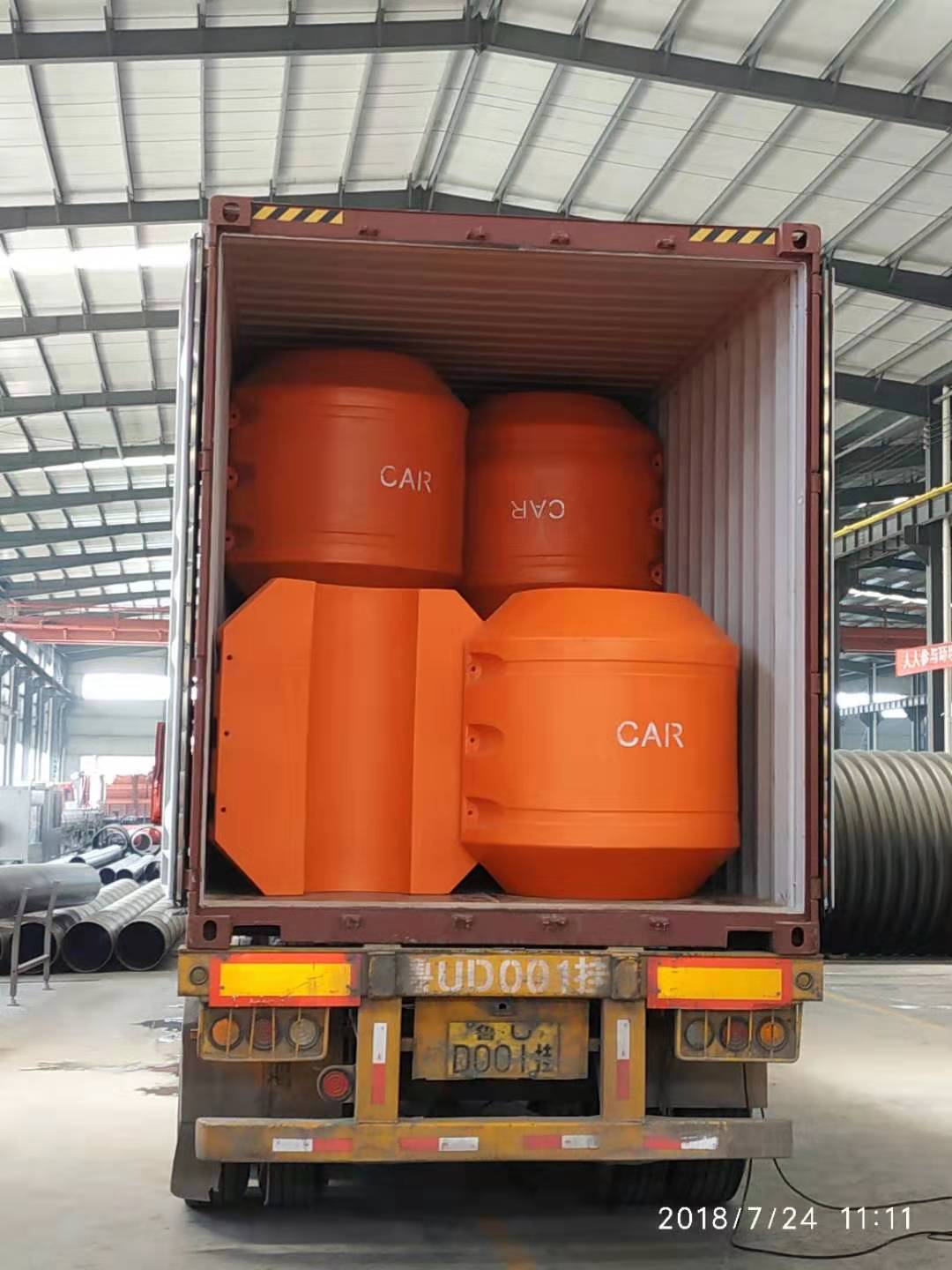

Loading & Shipment

SINOPIPE dredging floater have been exporting many foreign countries, such as Bangladesh, The Philippine, Columbia,South Africa, Zambia, Nigeria,Ethiopia,Russia and USA etc. Thanks to the superior quality, SINOPIPE dredging floater has been the first choice for our customers.
