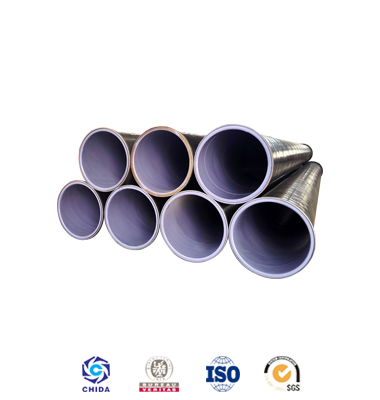

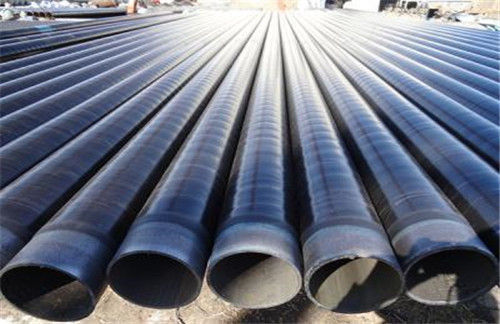

3LPE Pipe

3LPE coating system is a multi-layer coating structure composed of three coating materials of fusion bonded epoxy (FBE), copolymer adhesive and PE top coats for steel pipe anti-corrosion.

---

Sinopipe’s 3LPE anti-corrosive coating combines the high impermeability and high mechanical properties of epoxy resin and polyethylene materials. The maximum pressure rate of steel pipe is more than 25 Mpa. Among all the pipeline anti-corrosive coating，3LPE coating is so far been considered has the best effect and performance that applied in water transportation projects.

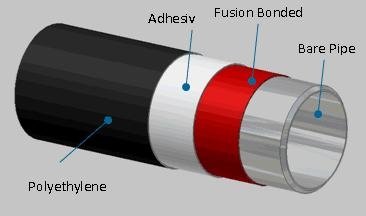

Anti-corrosion Form of 3LPE PIPE Exterior Wall

The external anti corrosion of 3LPE generally consists of three layers:
※First layer epoxy powder (FBE > 100um)
※Second Layer Adhesive (AD) 170-250um
※The third layer polyethylene (PE) 1.8-3.7mm

The inner anti-corrosive coating of 3PE pipe is generally epoxy powder.

Main Material Types of 3LPE Steel Pipe
※Seamless steel
※Spiral steel pipe
※ERW steel pipe
Among the above 3,Spiral steel pipe is the most widely type used because of its high cost performance.

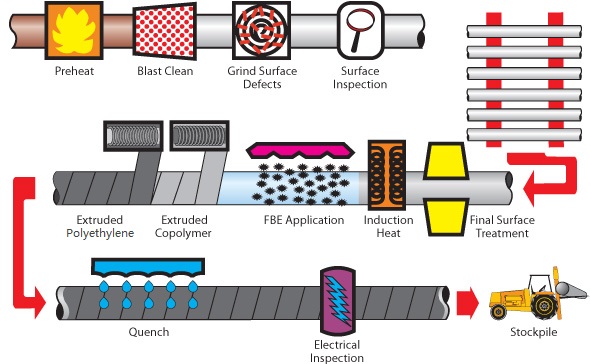

Producing Process of 3LPE Pipe
